Building your own vape coils sounds more complicated than it is. With the right tools, it's a straightforward process that gives you more control over your vaping experience and saves you money on replacement coils over time. You don't need a drawer full of gear: a coil jig, resistance wire, ceramic tweezers, a way to read resistance, and cotton. Here's the honest list, what each one does, and where we stock it.

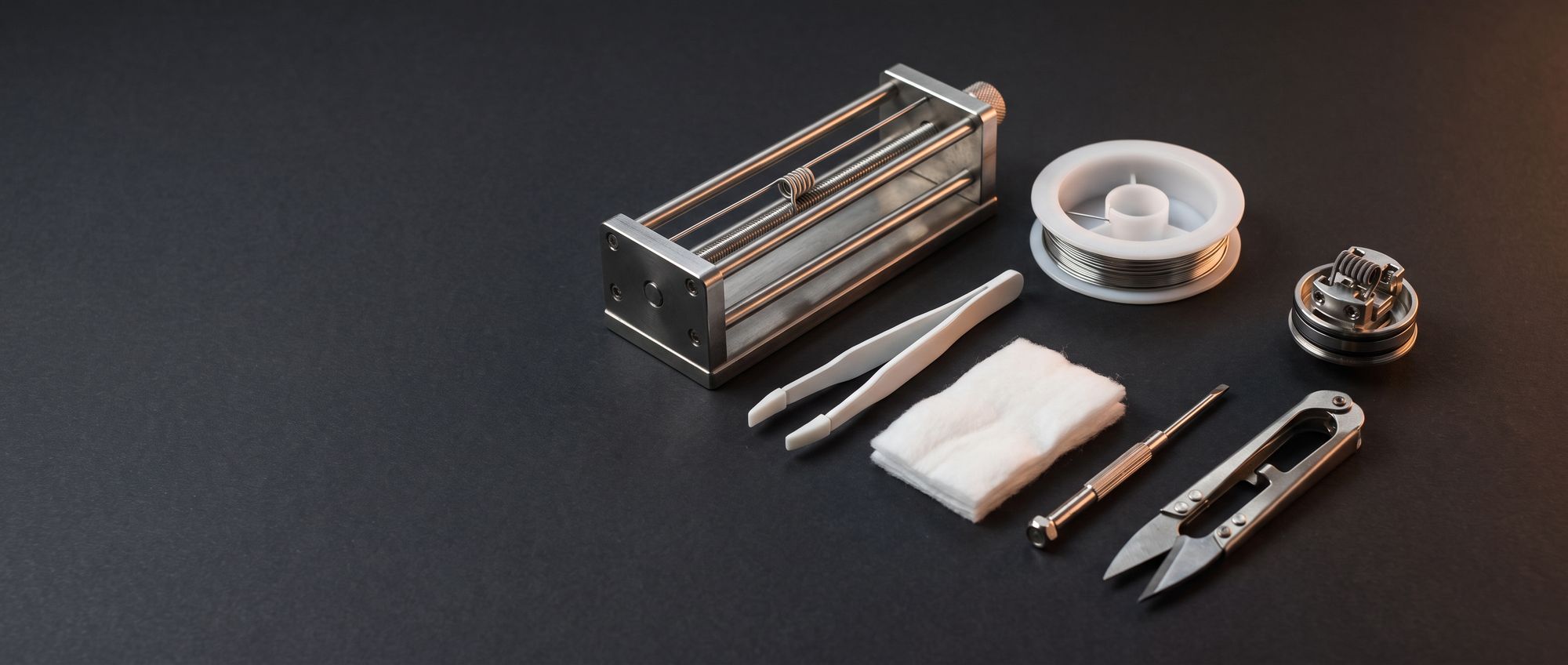

The five coil building tools you need
| # | Tool | What it does | At SmokTek |
|---|---|---|---|
| 1 | Coil jig | Wraps consistent coils at a set diameter | Tobeco Coil Jig V2, Tobeco Coil Tool |
| 2 | Resistance wire | The coil itself | Kanthal A-1 (six gauges), Kanthal ribbon |
| 3 | Ceramic-tip tweezers | Compress wraps and strum out hot spots on a live coil | Ceramic Tip Tweezers, replacement tips |
| 4 | Ohm reader | Confirms resistance before the coil sees a battery | DT830D Digital Multimeter |
| 5 | Wicking cotton | Carries e-liquid to the coil | Not stocked; any unbleached Japanese organic cotton pad |
1. A coil jig
This is the most important tool. A coil jig lets you wrap consistent coils around a mandrel at a specific diameter. The Tobeco Coil Jig V2 is a solid, affordable option we stock, and the V2 redesign makes it noticeably easier to use than earlier versions. The compact Tobeco Coil Tool does the same job in a pocketable form. We cover the jig in detail in our Tobeco Coil Jig V2 write-up.
2. Resistance wire
Kanthal A-1 is the standard starting point for most builders: forgiving, easy to work with, and widely compatible. We carry Kanthal A-1 resistance wire in the gauges you'll actually use, 24 through 34 AWG in 32ft spools, plus a flat ribbon version. Start with 24 or 26. Our Kanthal wire guide has the resistance-per-foot figures for every gauge.
3. Ceramic-tip tweezers
You'll use these to strum your coils (check for hot spots) and compress your wraps. The ceramic tips mean you can touch a heated coil without shorting it out. Our Ceramic Tip Tweezers are the one tool people forget and then wish they had; replacement tips are available if you eventually chip one.
4. An ohm reader
Always check your coil's resistance before installing it in your mod. This is a safety step, not optional. A multimeter works, or you can use a dedicated ohm/volt meter; we stock the DT830D Digital Multimeter, and our ohm meter guide explains how to take a clean reading with it.
5. Wicking material
Japanese organic cotton is the go-to. Koh Gen Do is a popular choice among builders for its consistent quality and neutral flavor. We don't currently stock cotton, so pick up a pad of unbleached organic cotton wherever is convenient; one pad lasts for many builds.
How to build a coil: the short version
- Wrap 24 or 26 AWG Kanthal around the jig rod, six to eight turns for a first build
- Trim the legs, seat them under the deck's post screws, and tighten
- Read the resistance and confirm it's above your mod's minimum
- Pulse the coil at low power and strum it with the ceramic tweezers until it glows evenly from the center outward
- Let it cool, thread cotton through, trim the tails, and saturate with e-liquid before firing
A user-friendly deck makes the first few builds easier. The APO, Zenith V2 and IGO-W6 RDAs all have roomy posts and simple airflow. Pair them with a regulated mod from advanced mods and tank kits; our VV/VW beginner's guide covers the settings.
That's genuinely all you need to start. Once you've got the basics down, coil building becomes quick and intuitive, and the results are usually better than pre-built coils. If it turns out not to be your thing, the replacement coils collection has pre-built heads for every tank we sell.
Frequently asked questions
Do I need a full vape coil building kit to start?
No. A jig, wire, ceramic tweezers, something to read ohms and cotton is genuinely the whole list. Kits bundle extras like screwdrivers and snips that are nice to have but not essential on day one.
How do I build a coil for the first time?
Wrap 24 or 26 gauge Kanthal on a 2.5 to 3 mm jig rod, six to eight wraps, trim the legs, seat it under the deck's post screws, measure the resistance, pulse it at low power while strumming with ceramic tweezers until it glows evenly from the center out, then wick it with cotton.
Does building coils really save money?
Yes, over time. A spool of wire and a bag of cotton make dozens of coils for less than the price of a couple of 5-packs of pre-built heads. The trade-off is ten minutes of your time per build.
What if I don't want to build?
Nothing wrong with that. Pre-built replacement heads for every tank we sell are in the replacement coils collection, with the resistance and wattage range printed on them.
