Building your own coils is rewarding and economical, but it comes with a responsibility to do it safely. The single most important safety practice is checking your coil's resistance before firing it in your mod. An ohm reader makes that fast and easy: screw the atomizer on, read the number, and only then put it on a battery. Here's why it matters, what to look for, and what we stock to do the job.
Why coil resistance matters
A coil that's shorted, has a loose lead, or is at an unexpectedly low resistance can cause problems ranging from poor performance to, in extreme cases, battery stress or failure. Checking resistance takes about ten seconds and eliminates a lot of risk.
Resistance is also what your mod uses to set power. If you run variable wattage, the mod reads the ohms and adjusts voltage to match; if you run variable voltage, the same voltage on a lower-resistance coil means more power and more heat. Our beginner's guide to VV and VW mods walks through the relationship.
What to look for in an ohm reader

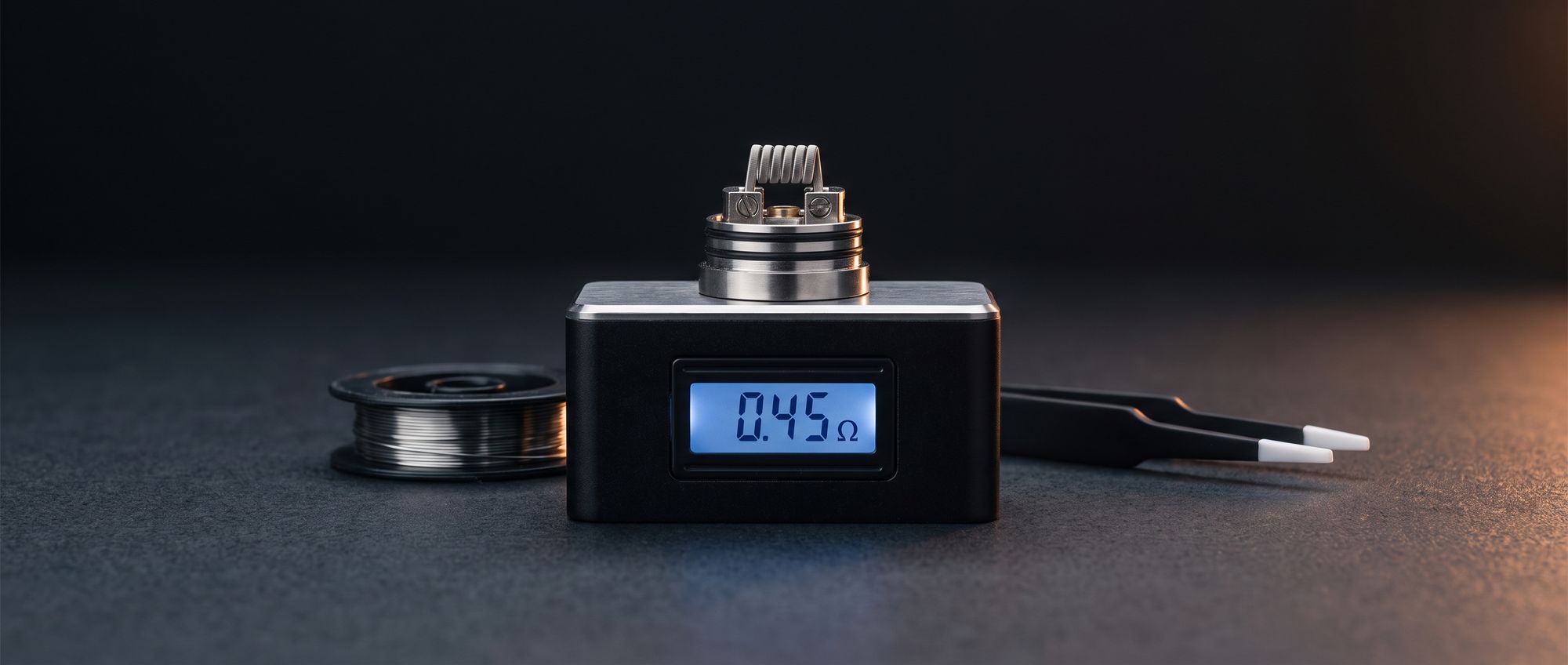

You want something that reads accurately down to at least 0.1 ohm, has a standard 510 connection for testing atomizers, and ideally shows voltage as well. A dedicated reader with a 510 post on top is the most convenient form: it holds the atomizer for you and gives a stable reading while you adjust leads and re-tighten post screws.
Ohm reader or multimeter: what we carry
Straight answer: we don't currently stock a dedicated 510 ohm reader. The Eleaf LCD ohm/volt meter we used to carry is no longer in the catalog. What we do carry is the DT830D Digital Multimeter, a basic, inexpensive test meter that reads resistance and voltage and does the job with a little more care.
| Dedicated 510 ohm reader | DT830D multimeter (what we stock) | |
|---|---|---|
| Connection | Screw the atomizer onto a 510 post | Touch probes to the center pin and outer thread |
| Reading | Direct resistance, often voltage too | Resistance and voltage; on its lowest range it resolves to a tenth of an ohm |
| Extra step | None | Touch the probes together first and subtract that lead reading |
| Best for | Frequent builders, sub-ohm builds | Occasional builders, MTL builds around 1 ohm and up, checking batteries |
For builds well above 1 ohm, the multimeter is plenty. For low sub-ohm builds where a tenth of an ohm is a big percentage, a dedicated reader is worth seeking out.
How to check a coil
- Build your coil and install it in your RDA or RTA
- Screw the atomizer onto the reader, or touch the multimeter probes to the 510 center pin and the outer threading (don't press any fire button)
- Read the resistance on the display
- Verify it matches your expected resistance within a reasonable margin; if it drifts or jumps, re-seat the leads and tighten the post screws
- Check that there are no leads touching the deck that shouldn't be
Only after confirming a safe, stable reading should you install the atomizer in your mod and fire it. It takes seconds and makes coil building a much safer hobby.
Other tools for coil builders
| Tool | What it's for |
|---|---|
| Tobeco Coil Jig V2 | Consistent wraps at a set diameter. See our write-up. |
| Kanthal A-1 resistance wire | The standard round wire, sold in 32ft spools in several gauges. See what you need to know about Kanthal. |
| Kanthal A-1 flat ribbon wire | More surface area than round wire; a clearance item while it lasts. |
| Silica wick | Heat-resistant wick for genesis-style and older rebuildables. |
| APO RDA, Zenith V2 RDA, IGO-W6 RDA | User-friendly decks to build on. |
New to all of this? Start with coil building tools: what you actually need to get started. If you'd rather not build at all, pre-made heads in our replacement coils collection come with their resistance printed on them, and any regulated kit in advanced mods and tank kits will read it for you.
Frequently asked questions
Can I use a regular multimeter instead of a vape ohm reader?
Yes. Set it to its lowest resistance range, touch the probes together first and note that reading (your lead resistance), then measure across the atomizer's positive pin and outer thread and subtract the lead figure. A dedicated 510 reader is just faster.
What coil resistance is safe?
It depends entirely on your device. A regulated mod lists a minimum resistance it will fire; stay above it. If you ever use an unregulated mechanical mod, never fire a coil you haven't measured, because nothing in the device will stop a short.
Why does my resistance reading jump around?
Almost always a loose connection: post screws not tightened on the leads, a lead trimmed too short, or the coil legs touching the deck. Re-seat the coil, tighten the screws, and measure again until the number holds steady.
Do I still need an ohm reader if my mod reads resistance?
A regulated mod will show the resistance, but a reader lets you check and adjust a build before it ever touches a battery, and catches a short without the mod having to refuse to fire. Cheap insurance for a few dollars.
Questions about a build or a reading? Real people, real service. Family-run since 2011, and we've wrapped a few coils ourselves.
