Vaporesso GTX Replacement Coils (5-Pack)

Vaporesso GTX Replacement Coils (5-Pack)

Genuine Vaporesso GTX coils, the push-fit mesh coils used in the Luxe XR, Luxe XR Max, Target PM80, Swag PX80, GTX Go, Armour G and GEN PT series. GTX-2 coils are the same fit. These are not GTi coils (for the iTank, Armour Ultra and GEN 200) or GT Cores (for the NRG tank); shop GTi coils or GT Cores instead.

GTX is Vaporesso's universal pod and small-tank coil platform. One coil family covers everything from a tight mouth-to-lung (MTL) draw on a 1.2Ω coil to a full direct-to-lung (DTL) cloud on a 0.15Ω. That's why the same coils turn up in more than a dozen Vaporesso kits.

The one catch is power. Low-wattage pods only support the higher-resistance GTX coils, so check the compatibility list below before picking a sub-ohm option.

Vaporesso GTX Coils Key Features

• Mesh and dual mesh options – Dual mesh spreads heat across two mesh strips for smoother flavor at the same wattage
• MTL to DTL in one platform – 1.2Ω and 0.8Ω for tight draws, 0.15Ω–0.4Ω for clouds
• Press-fit installation – No threading, swap in seconds
• Triple silicone seal – Built to resist leaks
• Genuine Vaporesso – Authentic coils, not clones

Vaporesso GTX Coils Specifications

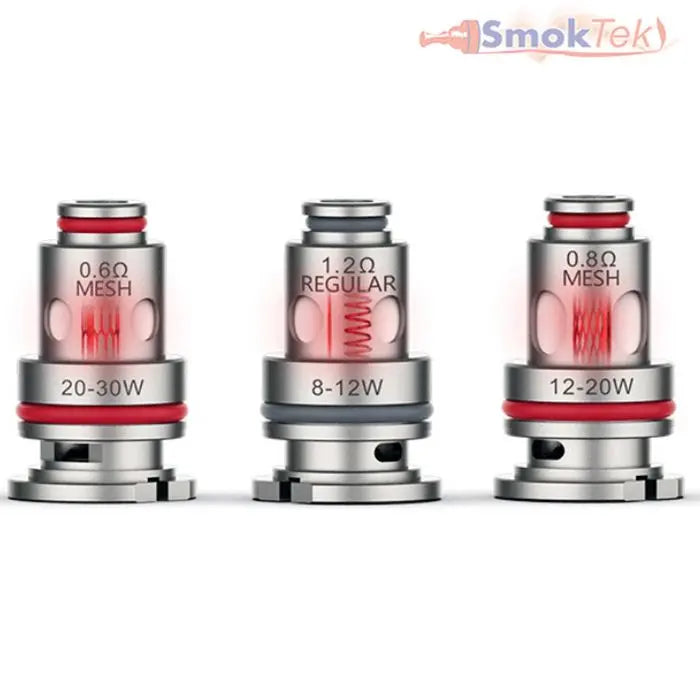

• GTX 0.15Ω Mesh / Dual Mesh: 60–75W, DTL
• GTX 0.2Ω Mesh / Dual Mesh: 45–60W, DTL
• GTX 0.3Ω Mesh / Dual Mesh: 32–45W, DTL
• GTX 0.4Ω Mesh: 26–32W, DTL
• GTX 0.6Ω Mesh: 20–26W, restricted DTL / MTL
• GTX 0.8Ω Mesh: 12–16W, MTL
• GTX 1.2Ω Mesh: 8–12W, MTL
• GTX 1.2Ω Regular: MTL
• Installation: Press-fit
• Also known as: GTX-2 coils, Luxe XR coils, Target PM80 coils

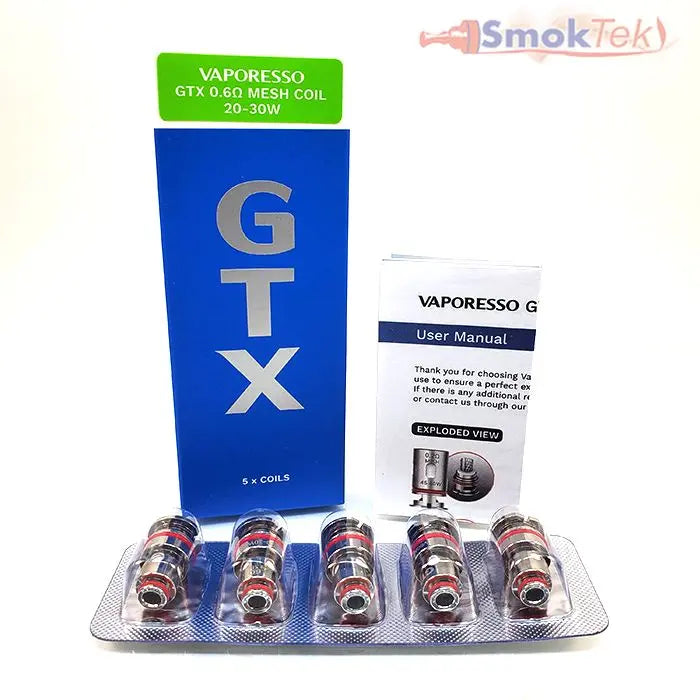

• In the box: 5 coils, one resistance per pack

Wattage ranges are Vaporesso's current published figures.

Which Devices Do Vaporesso GTX Coils Fit?

All GTX coils (0.15Ω–1.2Ω):

• Luxe XR Max · Luxe XR Max 2 · Luxe XR Empty Pod
• Armour G · Armour GS
• GEN PT60S · GEN PT80S
• xTank Pod
• Target PM80 · Target PM80 SE
• Swag PX80
• GTX Go 80 (GTX Pod 26)
• Xiron · GEN Nano
• GTX Tank 22

0.6Ω and above only:

• Luxe XR Pod · Luxe X2
• xTank T
• Target PM30 · Luxe PM40
• GTX One · GTX Tank 18

For the GTX Go 40 (GTX Pod 22), pick a coil whose wattage range fits under the device's 40W maximum.

GTX vs GTi vs GT Cores

Vaporesso uses three coil platforms that don't interchange. GTX coils are for pods and small tanks (this page). GTi coils are larger, high-wattage coils for the iTank, iTank T, Armour Ultra and GEN 200. GT Cores are the older screw-in coils for the NRG, Cascade and SKRR tanks.

How to Replace a GTX Coil

1. Remove the pod or unscrew the tank base.
2. Pull the old coil straight out.
3. Drip a few drops of e-liquid into the top of the new coil and onto the side wicking holes.
4. Press the new coil in until it seats, then fill the pod or tank.
5. Wait 5 minutes before vaping and start at the low end of the wattage range.

Vaporesso GTX Coils FAQ

Do GTX coils fit the Luxe XR and Luxe XR Max?
Yes. The XR Max takes every GTX coil. The standard Luxe XR pod takes the 0.6Ω, 0.8Ω and 1.2Ω.

What's the difference between GTX and GTX-2 coils?
GTX-2 was a later revision with the same size and fit. Any device that takes GTX coils takes GTX-2.

Which GTX coil is best for MTL?
The 1.2Ω Mesh (8–12W) gives the tightest, most cigarette-like draw. The 0.8Ω (12–16W) is a little looser and warmer.

How long do GTX coils last?
Usually 5–10 days. Very sweet e-liquids and running at the top of the wattage range shorten coil life. If coils are burning out in 2–3 days, drop the wattage and let new coils prime longer.

Will GTX coils fit my iTank or Armour Ultra?
No. Those use GTi coils.
